2500A

Description

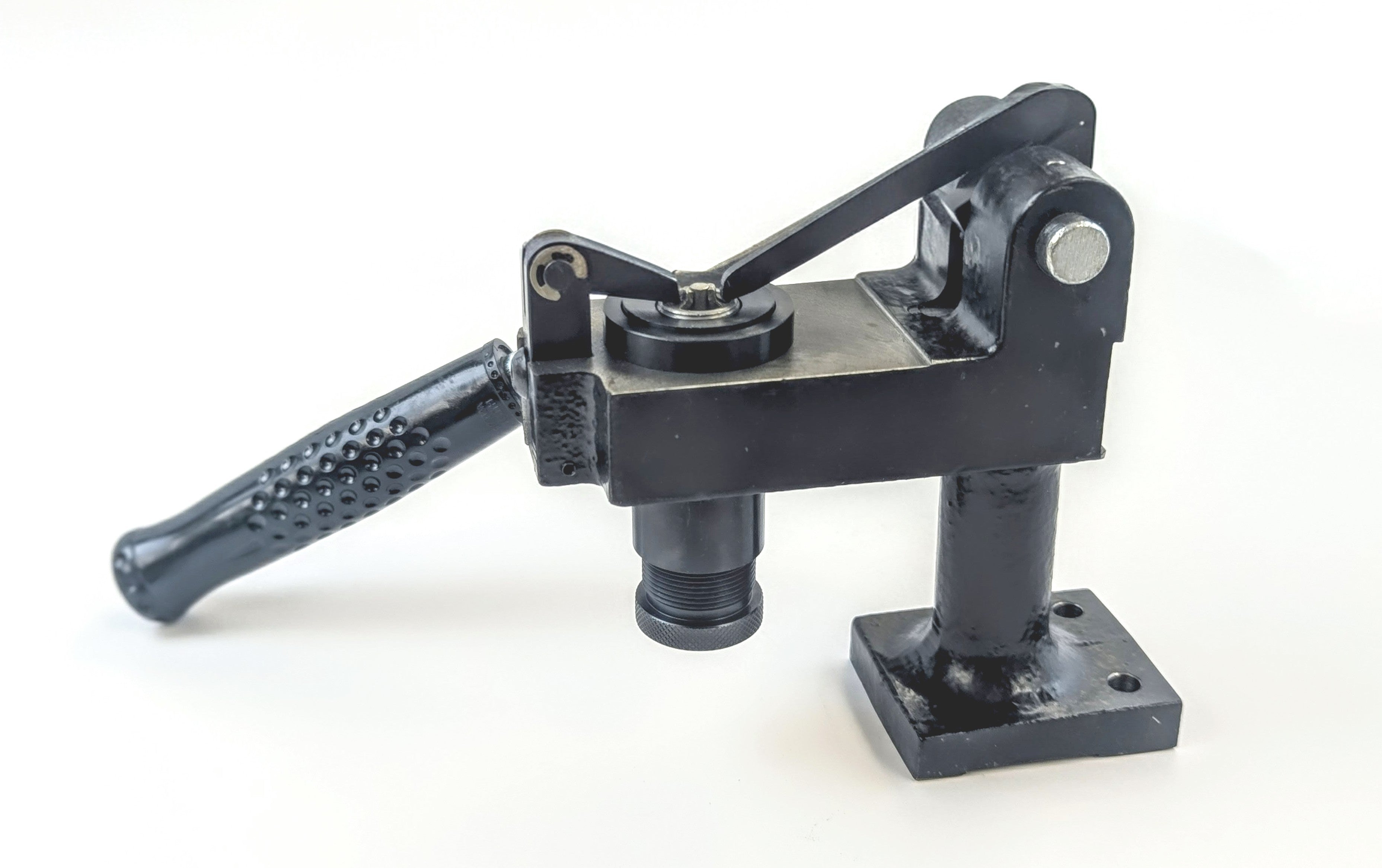

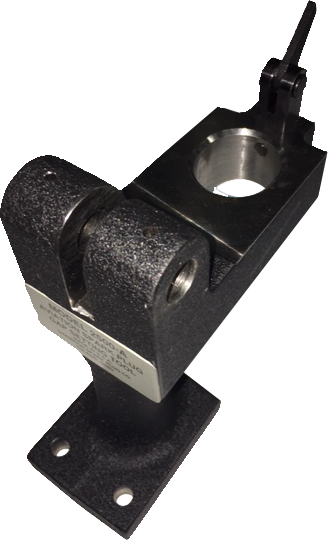

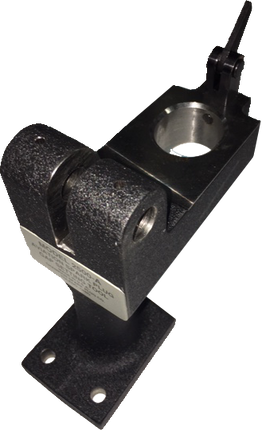

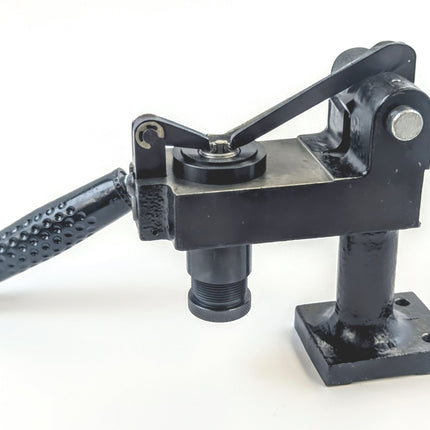

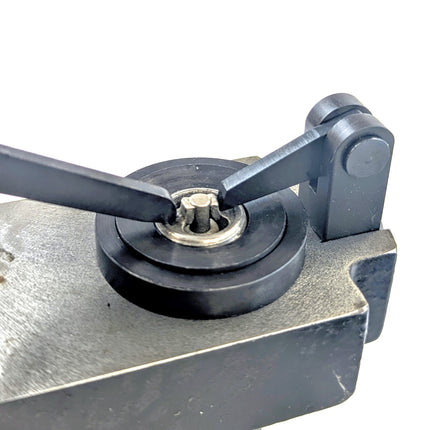

A precision gap-setting tool for all massive-electrode Champion sparkplugs.  Permits simultaneous adjustment of two opposite prongs without removing the spacing gauge.  Designed for permanent installation on bench or heavy wooden board.

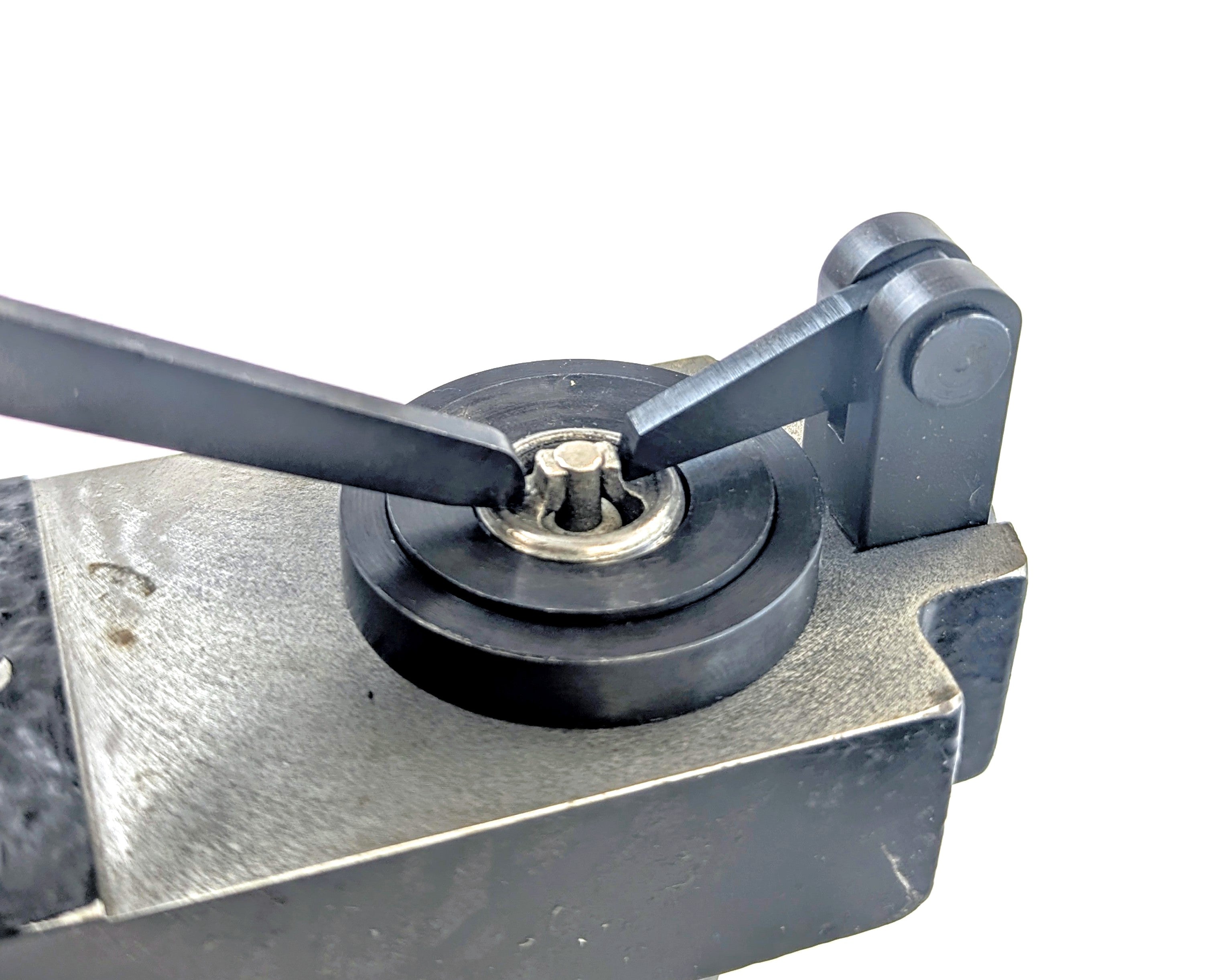

Four prong "N" and two-prong "E" Aviation spark plugs are easily adjusted using the Model 2500 Gap Setting Tool.  Since this tool adjusts two prongs simultaneously, it is particularly adaptable to high volume gap setting requirements.

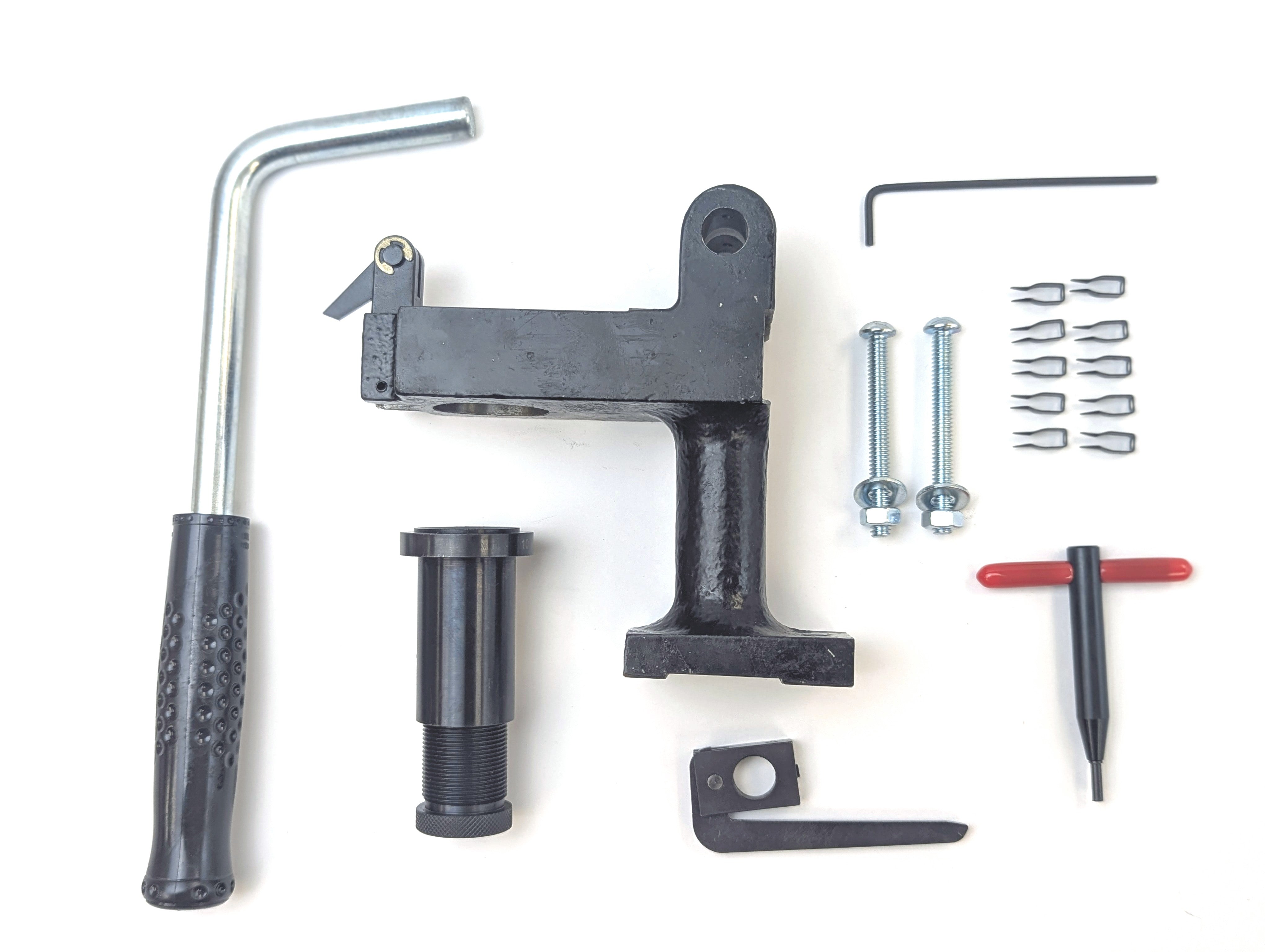

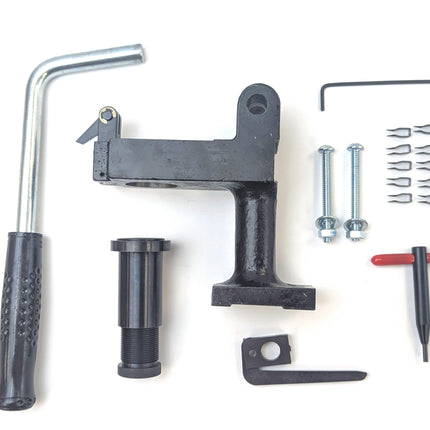

Accessories Packaged in Model 2500A Gap Setting Tool:

  • 10 pcs -  GT-1-17L Spacing Gauge (.015"-.019"/.40-.50mm)
  • 1 Pc - GT-1-27 Spacing Gauge Handle Assembly
  • 1 PC - CT-458-2 Lever
  • 1 PC - CT458-3 - Toggle Link
  • 1 PC - CT458-4 - Toggle Arm
  • 1 PC - CT458-5 - Toggle Pin
  • 1 PC - CT458-6 - Stationary Finger
  • 1 PC - CT458-7 Stationary Finger Support
  • 1 PC - CT458-10 - Upper Collet Bushing
  • 1 PC - CT458-11 - Centering Bushing
  • 1 PC - CT458-12 - Collet Adjustment Bushing
  • 1 PC - CT458-13 - Spring Pin
  • 1 PC - CT458-15 - Finger Pin

*Spares of the above part numbers are also sold separately in the event they are lost or misplaced.*





Maintenance:

Like all shop tools, the Champion Model 2500 Gap Setting Tool requires a minimum of shop maintenance.  It should be kept clean and lubricated periodically for most efficient operation.  Adjusting level should be lubricated with a light machine oil.  The upper collet bushing and frame collet bearing surface should be cleaned and libricated with a light grease of Champion's thread lubricant (Part number 2612) as necessary.  Most important, the collet should float freely in the frame at all times.**





Please refer to the following installation guide for a general overview of tool assembly and unboxing.  Please refer to your champion manuals for verification of gapping.



2500A

Product form

A precision gap-setting tool for all massive-electrode Champion sparkplugs.  Permits simultaneous adjustment of two opposite prongs without removing the spacing... Read more

2 in stock Next day delivery

$529.00 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Mar 17, 2026 23:59:00 -0400

        Description

        A precision gap-setting tool for all massive-electrode Champion sparkplugs.  Permits simultaneous adjustment of two opposite prongs without removing the spacing gauge.  Designed for permanent installation on bench or heavy wooden board.

        Four prong "N" and two-prong "E" Aviation spark plugs are easily adjusted using the Model 2500 Gap Setting Tool.  Since this tool adjusts two prongs simultaneously, it is particularly adaptable to high volume gap setting requirements.



        Accessories Packaged in Model 2500A Gap Setting Tool:

        • 10 pcs -  GT-1-17L Spacing Gauge (.015"-.019"/.40-.50mm)
        • 1 Pc - GT-1-27 Spacing Gauge Handle Assembly
        • 1 PC - CT-458-2 Lever
        • 1 PC - CT458-3 - Toggle Link
        • 1 PC - CT458-4 - Toggle Arm
        • 1 PC - CT458-5 - Toggle Pin
        • 1 PC - CT458-6 - Stationary Finger
        • 1 PC - CT458-7 Stationary Finger Support
        • 1 PC - CT458-10 - Upper Collet Bushing
        • 1 PC - CT458-11 - Centering Bushing
        • 1 PC - CT458-12 - Collet Adjustment Bushing
        • 1 PC - CT458-13 - Spring Pin
        • 1 PC - CT458-15 - Finger Pin

        *Spares of the above part numbers are also sold separately in the event they are lost or misplaced.*





        Maintenance:

        Like all shop tools, the Champion Model 2500 Gap Setting Tool requires a minimum of shop maintenance.  It should be kept clean and lubricated periodically for most efficient operation.  Adjusting level should be lubricated with a light machine oil.  The upper collet bushing and frame collet bearing surface should be cleaned and libricated with a light grease of Champion's thread lubricant (Part number 2612) as necessary.  Most important, the collet should float freely in the frame at all times.**





        Please refer to the following installation guide for a general overview of tool assembly and unboxing.  Please refer to your champion manuals for verification of gapping.
