Description
Isolation Mount Installation Tool for T94 / HTC Mounts

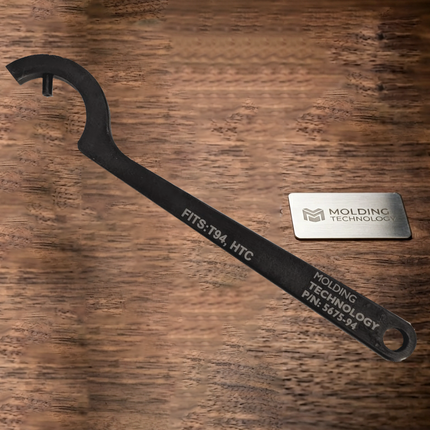

The 5675-94 T-Mount Spanner Wrench is a precision tool designed for installing and removing avionics isolation mounts that utilize drill-rod hole core designs. This mount-specific spanner allows technicians to securely hold the mount core while applying torque, preventing core spin during installation or removal.
Unlike traditional drill-rod methods, the 5675-94 spanner provides a stable and repeatable anti-rotation interface, helping reduce the risk of damage to mount cores, threads, and protective coatings during avionics maintenance procedures.
The spanner head is engineered with a pin size and arc geometry matched to the mount’s drill-rod hole diameter, ensuring proper engagement and safe installation.
Key Features
• Designed specifically for avionics isolation mounts with drill-rod hole cores
• Prevents core spin during torque installation
• Helps protect mount threads, coatings, and core holes
• Enables repeatable torque application during installation
• Allows 180° rotation for quick removal and installation
• Precision matched to the mount core geometry
Compatible Mount Series
The 5675-94 spanner is designed for use with the following isolation mount families:
These mounts are commonly used in aircraft avionics tray installations and LRU mounting systems.
Typical Applications
• Aircraft avionics tray installations
• LRU mounting systems
• Isolation mount installation and removal
• Aircraft maintenance, repair, and overhaul (MRO)
• Avionics equipment servicing
Specifications
Tool Model: 5675-94
Mount Compatibility: T94, HTC
Application: Avionics isolation mount installation and removal
Manufacturer: Molding Technologies
Available Mount Sizes
This spanner is part of the 5675 T-Mount Spanner Series, which includes tools for multiple mount sizes including:
-
5675-10
-
5675-11
-
5675-12
-
5675-22
-
5675-44
-
5675-64
