Description

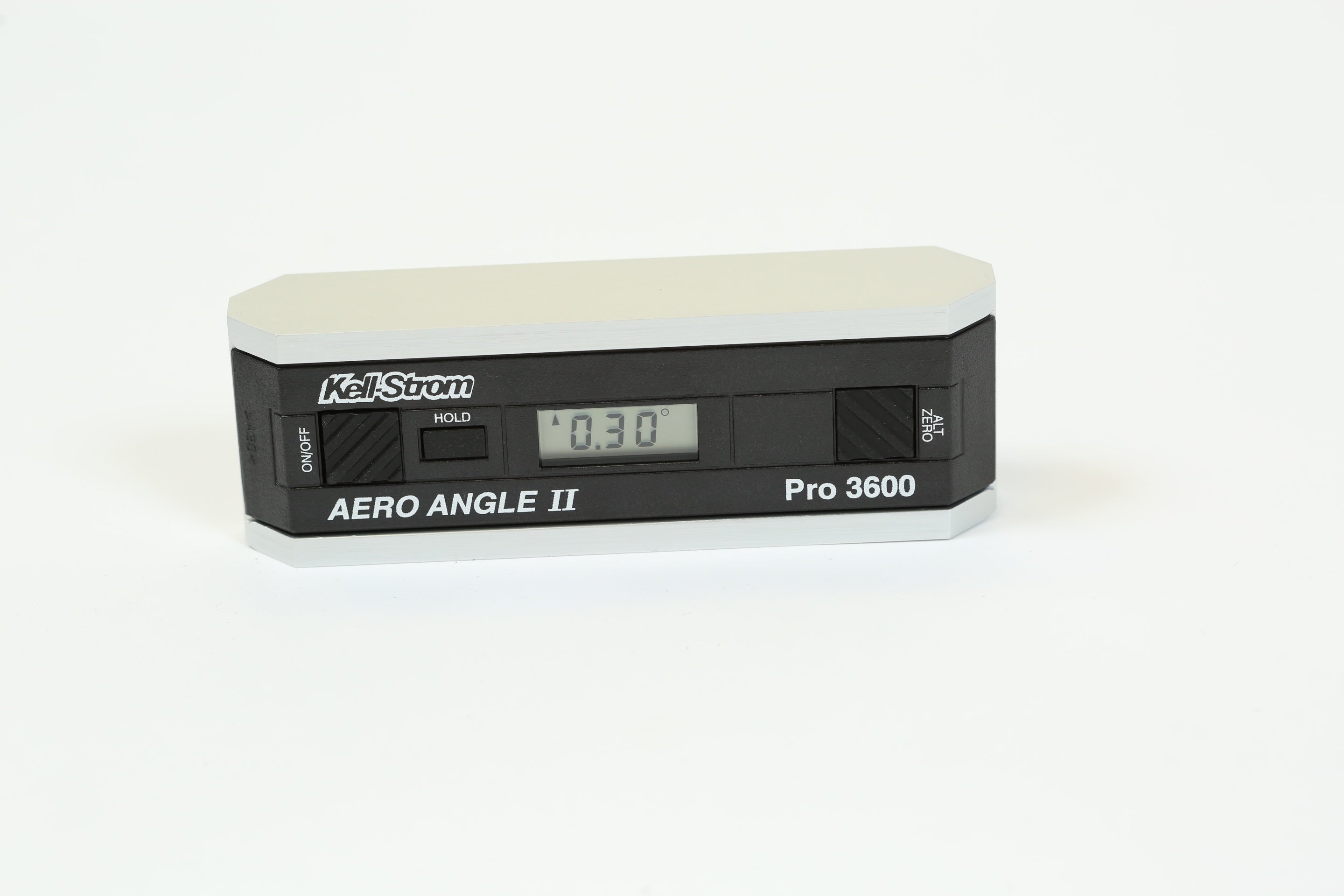

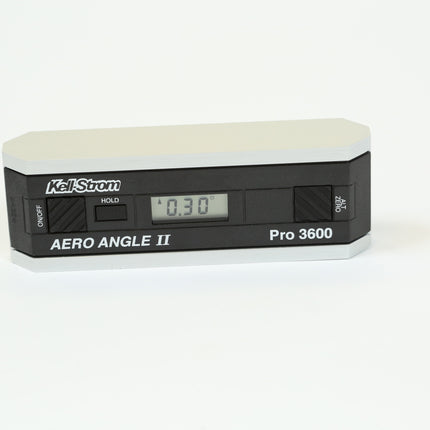

The Kell-Strom KS6005 PRO 3600 Digital Protractor is a high-precision electronic angle measurement tool designed to deliver instant digital readings for level, plumb, and every angle across a full 360° range.
Constructed with a precision-machined aluminum housing and integrated base plate, the PRO 3600 provides a rigid, lightweight platform that supports extremely accurate angle measurement. The internal electronic sensor and microprocessor continuously monitor orientation changes and convert them into precise digital readings displayed on the LCD screen.
Engineered for applications where higher precision is required, the PRO 3600 offers resolution down to 0.01°, making it ideal for aviation maintenance, machining, alignment work, and other technical environments where exact angle measurement is critical.
A built-in RS-232 compatible serial port allows the instrument to interface with computers or inspection systems for data collection, analysis, and SPC (Statistical Process Control) documentation.
The KS6005 combines portability, durability, and professional-grade accuracy for technicians who require dependable digital angle measurement in demanding environments.
Key Features
• Full 360° Measurement Capability
Measures angles across the entire 360° range (displayed in four 90° quadrants).
• High-Resolution Measurement
Provides resolution down to 0.01° for highly precise angle readings.
• Machined Aluminum Construction
Durable and lightweight frame designed for professional mechanical and aviation use.
• Integrated Base Plate
Provides stable placement on surfaces for reliable angle measurement.
• RS-232 Data Output
Serial port allows connection to computers for measurement logging and SPC record keeping.
• Digital LCD Display
Clear, easy-to-read display for fast and accurate angle interpretation.
• Portable and Battery Powered
Operates on a standard 9-volt battery with long operating life.
Specifications
Part Number: KS6005
Measurement Range: 360° (90° × 4 quadrants)
Resolution
0.01° (0° – 10°)
0.10° (10° – 90°)
Accuracy
±0.05° (0° – 10°)
±0.10° (80° – 90°)
±0.20° (10° – 80°)
Repeatability
0.05°
Cross Axis Error
Minimal
Serial Port
Type: RS-232
Connector: 10-pin rectangular
Power Supply
9-Volt Alkaline Battery
Battery Life
Approx. 500 hours (typical)
Operating Temperature
-5°C to 50°C (23°F to 122°F)
Storage Temperature
-20°C to 65°C (-4°F to 149°F)
Weight
10 oz (289 g)
Typical Applications
• Aircraft maintenance and alignment inspection
• Engine installation and rigging verification
• Precision machining setups
• Fabrication and tooling alignment
• Quality control and inspection measurement
